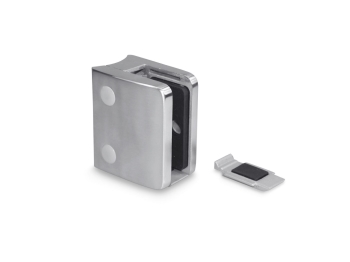

Glass Clamps - Model 35 - Rad

Glass Clamps - Model 35 - Rad
Glass Clamps - Model 35 - Rad CAD Drawing

Indoor G304

CodeØG (mm)BoltCADEnquire
34.3510.480.S48.310FF-45CAD DownloadEnquire
34.3512.480.S48.312FF-45CAD DownloadEnquire
34.3513.480.S48.313.52FF-45CAD DownloadEnquire
34.3515.480.S48.315FF-45CAD DownloadEnquire
34.3517.480.S48.317.52FF-45CAD DownloadEnquire

Outdoor G316's'

CodeØG (mm)BoltCADEnquire
36.3510.480.S48.310FF-46CAD DownloadEnquire
36.3512.480.S48.312FF-46CAD DownloadEnquire
36.3513.480.S48.312.76FF-46CAD DownloadEnquire
36.3515.480.S48.315FF-46CAD DownloadEnquire
36.3517.480.S48.317.52FF-46CAD DownloadEnquire
