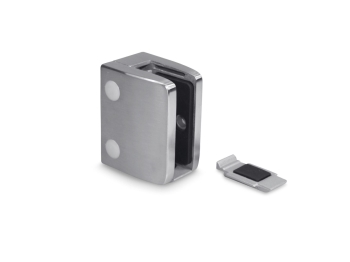

Glass Clamps - Model 35 - Flat

Glass Clamps - Model 35 - Flat

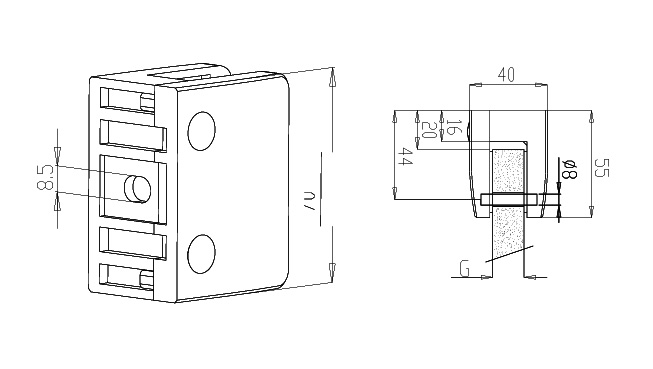

Glass Clamps - Model 35 - Flat CAD Drawing

Indoor G304

CodeG (mm)BoltCADEnquire
34.3510.000.S10FF-45CAD DownloadEnquire
34.3512.000.S12FF-45CAD DownloadEnquire
34.3513.000.S13.52FF-45CAD DownloadEnquire
34.3515.000.S15FF-45CAD DownloadEnquire
34.3517.000.S17.52FF-45CAD DownloadEnquire

Outdoor G316's'

CodeG (mm)BoltCADEnquire
36.3510.000.S10FF-46CAD DownloadEnquire
36.3512.000.S12FF-46CAD DownloadEnquire
36.3513.000.S13.52FF-46CAD DownloadEnquire
36.3515.000.S15FF-46CAD DownloadEnquire
36.3517.000.S17.52FF-46CAD DownloadEnquire
