Go Back to Glass Clamps - Stainless Steel

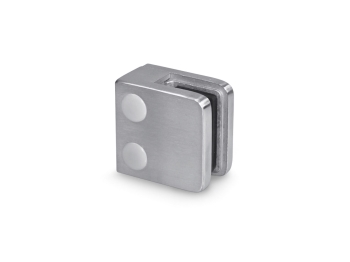

Glass Clamps - Model 31 - Flat

Name: Fastec Handrail Systems
Address: 282 Cutler Heights Lane, Bradford, BD4 9HU
Telephone: +441274474330

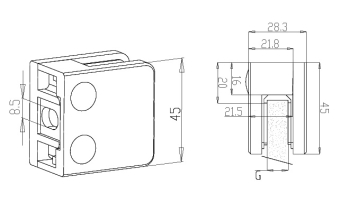

Glass Clamps - Model 31 - Flat CAD Drawing

Glass Clamps - Model 31 - Flat Fitting Type

Indoor G304

Code	G (mm)	Bolt	CAD	Enquire
34.3106.000.S	6	FF-45	CAD Download	Enquire
34.3108.000.S	8	FF-45	CAD Download	Enquire
34.3109.000.S	8.76	FF-45	CAD Download	Enquire
34.3110.000.S	10	FF-45	CAD Download	Enquire
34.3144.000.S	9.52	FF-45	CAD Download	Enquire

Outdoor G316's'

Code	G (mm)	Bolt	CAD	Enquire
36.3106.000.S	6	FF-46	CAD Download	Enquire
36.3108.000.S	8	FF-46	CAD Download	Enquire
36.3109.000.S	8.76	FF-46	CAD Download	Enquire
36.3110.000.S	10	FF-46	CAD Download	Enquire
36.3144.000.S	9.52	FF-46	CAD Download	Enquire
