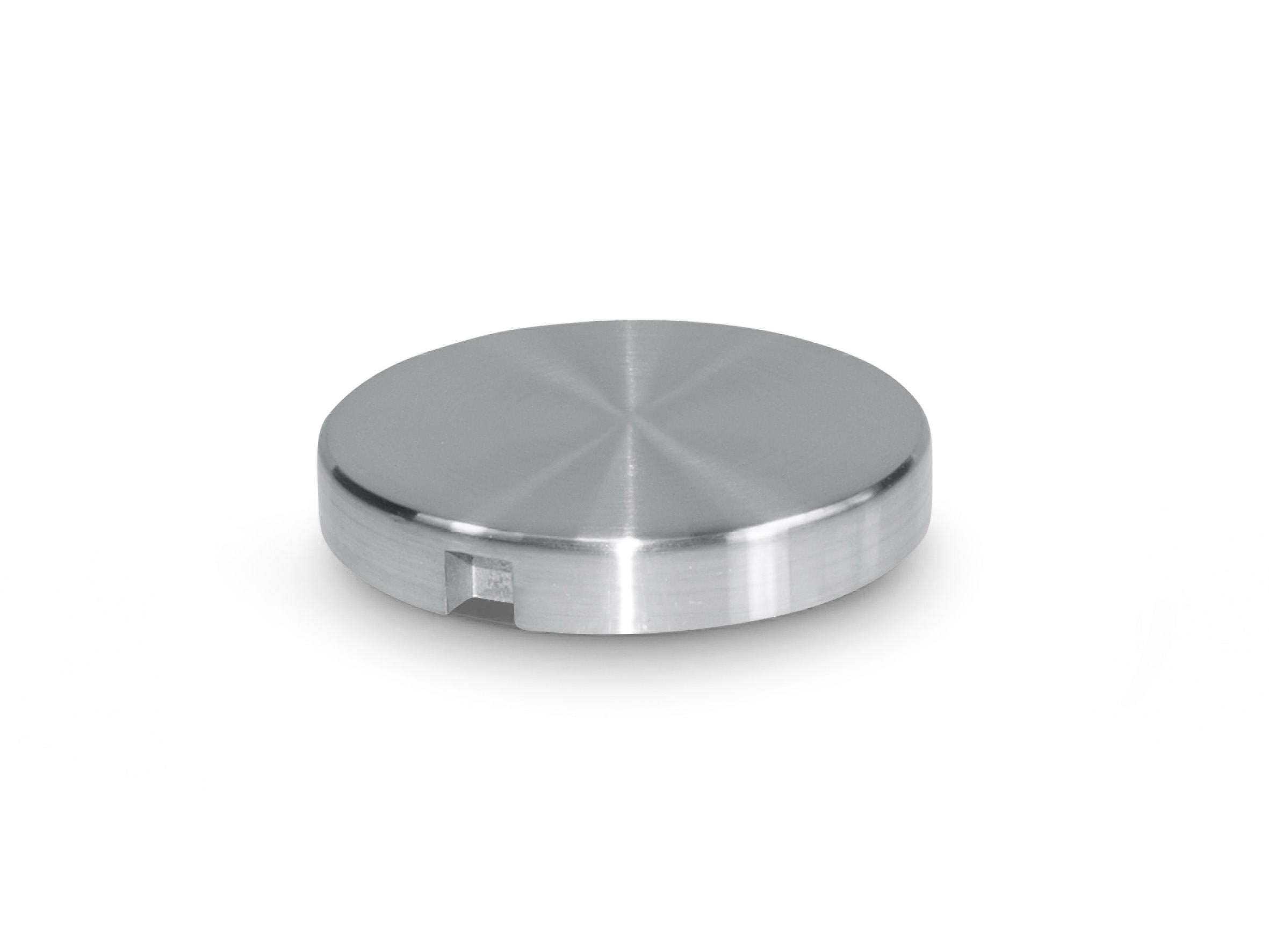

Clamp Fix End Cap - Model 1320

Clamp Fix End Cap - Model 1320

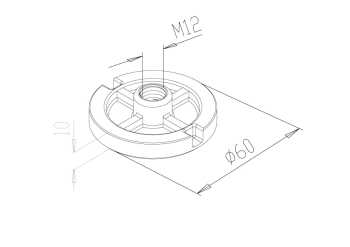

Clamp Fix End Cap - Model 1320 CAD Drawing

Indoor G304

CodeCADEnquire
34.1320.060.SCAD DownloadEnquire

Outdoor G316's'

CodeCADEnquire
36.1320.060.SCAD DownloadEnquire
The Sign of Quality
Key Features

  Available in 304 grade stainless steel.

  316's' grade stainless steel. (superior corrosion resistance)

  To fit 42.4mm diameter stainless steel tube.

  To fit 48.3mm diameter stainless steel tube.

  To a fine brushed 320 grit satin finish.

 Weldable

Create a Clean Look with when Fastening Through a Stair Tread using Our Clamp Fix for Balustrades

Seamlessly fasten through stair treads and upgrade the overall appearance with a touch of elegance using our stainless steel clamp fixings. These innovative bases offer a user-friendly fixing, allowing for quick and easy installation of your balustrade system when the fixing required is a clamp through element.

Made from durable stainless steel, clamp-fix bases are built to withstand everyday wear and tear. They are ideal for applications where a thin fixing elements are present and it’s not possible to fix into this and clamping through is a better alternative.

Easy to install with a small intrusive diameter there are perfect for domestic and commercial balustrade applications.
